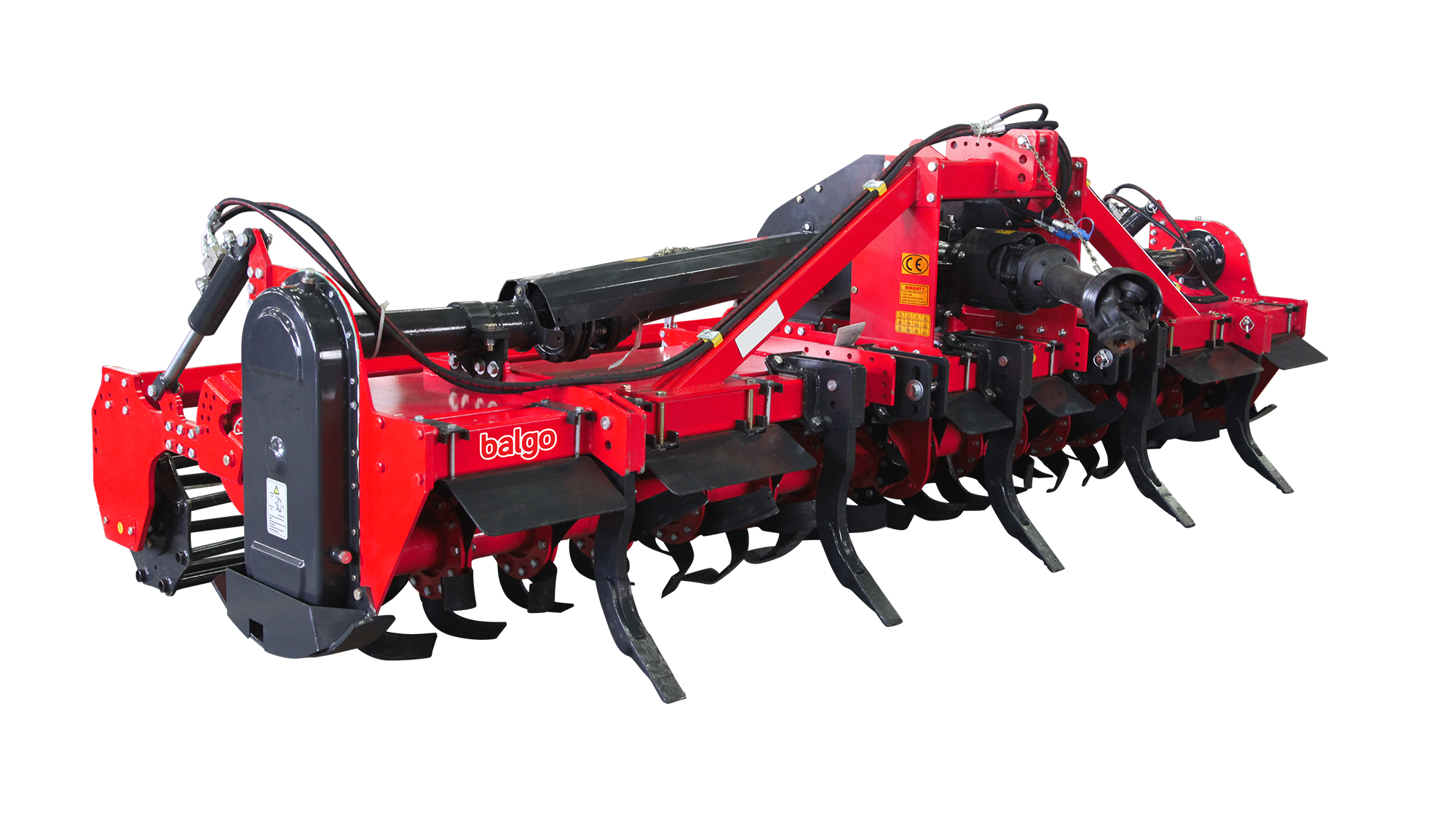

Balgo Rotary Tiller is mounted to tractor’s hydraulic arms and universal three point linkage system. 360- 410 - 460 - 510 cm series Balgo Rotary Tiller is used for preparing seed bed with tools such as chisel, plow, harrow with time, fuel, equipment, investment and cost of repair savings. This Rotary Tiller is equipped with the option of variable-speed gearbox.
Technical Specifications | Unit | BAF 360 | BAF 410 | BAF 460 | BAF 510 |
Width (mm) | mm | 3590 | 4090 | 4590 | 5090 |
Length (mm) | mm | 1890 | 1890 | 1890 | 1890 |
Height (mm) | mm | 1300 | 1300 | 1300 | 1300 |
Weight (kg) | kg | 1750 | 1800 | 1850 | 1900 |
Working Width (mm) | mm | 3300 | 3800 | 4300 | 4800 |
Working Depth (mm) | mm | 200 | 200 | 200 | 200 |
Number of Blades | pcs | 78 | 90 | 102 | 114 |
Blade Hardness (Rc) | Rc | 47 | 47 | 47 | 47 |
Blade Type (Optional) | C Type - L Type | C Type - L Type | C Type - L Type | C Type - L Type | |
Required Power (Hp) | Hp | 100/120 | 120/130 | 130/150 | 140/150 |
P.T.O. (rpm) | rpm | 540-750-1000 | 540-750-1000 | 540-750-1000 | 540-750-1000 |
