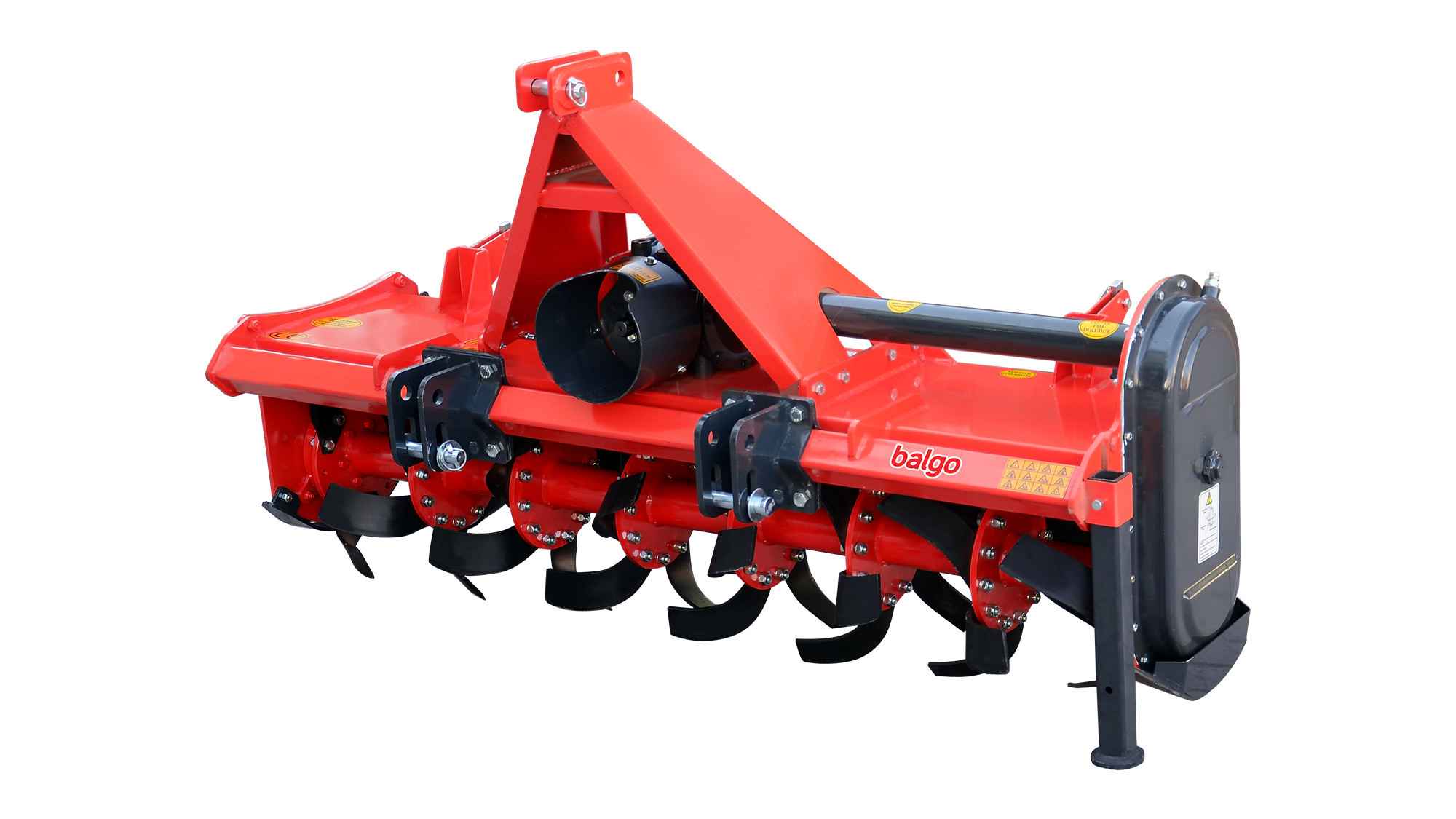

Fixed Rotary Tiller is a secondary tillage tool used in preparing seed-beds, stubble-ploughing in especially fields, vineyards and gardens. It is driven by the cardan shaft, power take-off drive of the tractor.The milling cutter blades shreds, mixes and crumbles the soil by operating vertically on the surface of the soil. It provides the water-air balance of the soil by making it loose.
Technical Specifications | Unit | BRS 160 | BRS 185 | BRS 210 | BRS 235 |
Width | mm | 1780 | 2030 | 2280 | 2530 |
Length | mm | 810 | 810 | 810 | 810 |
Height | mm | 1100 | 1100 | 1100 | 1100 |
Weight | kg | 430 | 460 | 490 | 520 |
Working Width | mm | 1550 | 1800 | 2050 | 2300 |
Working Depth | mm | 200 | 200 | 200 | 200 |
Number of Blades | pcs | 36 | 42 | 48 | 54 |
Blade Hardness | Rc | 47 | 47 | 47 | 47 |
Blade Type | Optional | C Type - L Type | C Type - L Type | C Type - L Type | C Type - L Type |
Required Power | Hp | 40/45 | 45/50 | 55/60 | 65/70 |
P.T.O. | rpm | 540 | 540 | 540 | 540 |
